Free Proxy Server using Squid Proxy on Linux Ubuntu Server Step by Step Guide
Free Proxy Server using Squid Proxy on Linux Ubuntu Server
Article about Intalling The Best Free Squid Proxy on Linux Ubuntu Server that can Optimising Web Delivery, reduces bandwidth and improves response times by caching. Find Premium Squid Proxy Server for Optimising Web Delivery, this article will explain How to Install Squid on your Ubuntu MachineWhy using Free Proxy Server using Squid Proxy on Linux Ubuntu Server and how to configure or instal it step by step, Like we know that squid proxy enable us to make internet access on our network more effectively and we can control an bandwith for our internet performance
** Note : Pay attention to every detail steps that informed, failure or damage to your system or data is not my responsibility "Do With Your Own Risk" or you can do research through the Lab to minimize your system failure
Tama on Google+
-----------------------------------------------------------------------------------------------------------------------------
Why Installing Free Proxy Server using Squid Proxy on Linux Ubuntu Server
Squid Proxy is a caching and forwarding HTTP web proxy server. a reason variety of uses, including speed up a web server by caching repeated requests, caching web, DNS and other computer network lookups for a group of people sharing network resources.
Squid is free open source proxy solution with premium solution, easy to use and maintenance. When you collaborate between squid proxy and linux ubuntu, it can save your IT budget and a great solution for your organizationHow to Installing Free Proxy Server using Squid Proxy on Linux Ubuntu Server Step by Step Guide
In this section, i will show you step by step on how to configure or instal squid proxy on your linux ubuntu server. below for step by step :- Open your ubuntu server terminal and run command
sudo apt-get install squid
then type "y" when prompt "do you want to continue?"
- If the process above has been finished, open your squid configuration file by run
sudo nano /etc/squid3/squid.conf
orsudo nano /etc/squid/squid.conf
for makesure that your squid proxy has been instal on your linux ubuntu machine - Last test For makesure your squid has been run, just configure your browser by fill an proxy server IP Address or FQDN (need to register on DNS) and port to 3128 (default squid proxy port number), on screenshoot below run on Mozilla Firefox
- If you can browse to internet or getting error message from your squid proxy machine. Congratulation, you had finish intal squid proxy on your linux ubuntu server
- The next step you we will learn about Access Control List (ACL) for create policy on your squid proxy server
- Open your ubuntu server terminal and run command
What is Access Control List (ACL) and How to Configure it
ACL or Access Control List is configuration code where give you ability for controlling as your policy on organization, whatever you need to controll just create and ACL and declare it. Below a little sample for introduction :- Open your squid proxy configuration file by run command
sudo nano /etc/squid3/squid.conf
- Sample of ACL Configuration Parameter
- ACL by IP Address
This sample used Class A IP Address, you will configure which IP will allow used squid network, by default format for acl is acl your-acl-name src your-ip-address/whatever-subnet-you-need see picture below for detail :
Then configure for open access to these IP by running below command, by default command format http_access deny acl_name / http_access allow acl_name

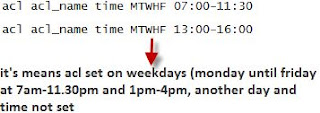

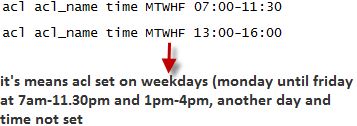

- ACL by Office Hour
This method will prevent accessing internet from proxy on weekdays and spesific hour

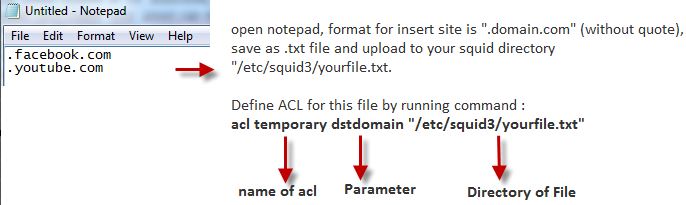

scenario is prevent social media access as per acl above, on this scenario we need created file where list which site will prevent access on acl above, below script creating file and format file
Next, activate acl by running below command
- ACL Port
By Default acl port show below, but you can customize as you needed :
acl SSL_ports port 443
acl Safe_ports port 80 # http
acl Safe_ports port 21 # ftp
acl Safe_ports port 443 # https
acl Safe_ports port 70 # gopher
acl Safe_ports port 210 # wais
acl Safe_ports port 1025-65535 # unregistered ports
acl Safe_ports port 280 # http-mgmt
acl Safe_ports port 488 # gss-http
acl Safe_ports port 591 # filemaker
acl Safe_ports port 777 # multiling http
acl CONNECT method CONNECT
Below declare parameter :
http_access deny !Safe_ports (all port will denied for access except acl name "safe_ports", argument "!" as exception) - ACL Mac Address Below sample paramater and argument
acl block_mac arp 01:23:45:AB:CD:EF
http_access deny block_mac - ACL by IP Address
Below my sample code :######################################
#
# Sample Script
# Created by http://www.diarysysadmin.com
# SQUID PROXY CONFIGURATION
#
######################################
# ACL BASED ON IP ADDRESS
acl localnet src 10.0.0.0/8 # RFC1918 possible internal network
acl localnet src fc00::/7 # RFC 4193 local private network range
acl localnet src fe80::/10 # RFC 4291 link-local (directly plugged) machines
#
# >> ACL BASED ON WORKDAYS AND WORKTIME
acl jam_kerja time MTWHF 07:00-11:30
acl jam_kerja time MTWHF 13:00-16:00
#
# >> ACL BASED ON PORT
acl SSL_ports port 443
acl Safe_ports port 80 # http
acl Safe_ports port 21 # ftp
acl Safe_ports port 443 # https
acl Safe_ports port 70 # gopher
acl Safe_ports port 210 # wais
acl Safe_ports port 1025-65535 # unregistered ports
acl Safe_ports port 280 # http-mgmt
acl Safe_ports port 488 # gss-http
acl Safe_ports port 591 # filemaker
acl Safe_ports port 777 # multiling http
acl CONNECT method CONNECT
#
# >> ACL Deskripsi MAC Address
acl boss arp B8-CA-3A-C7-E5-7E # Format Mac Address
#
# >> ACL Deskripsi Content
acl temporary dstdomain "/etc/squid3/deny_temporary.txt"
acl permanen dstdomain "/etc/squid3/deny_permanen.txt"
#
# ALL ARGUMENT START HERE
#
# >> ACL PORT ARGUMENT
http_access deny !Safe_ports
#
# >> DEFAULT SQUID PORT
http_port 3128
#
# >> SQUID ACCESS ARGUMENT
http_access allow localnet #OPEN ACL IP ADDRESS
http_access allow boss #OPEN ACL MAC ADDRESS
http_access deny temporary jam_kerja #OPEN ACL ON WORKDAYS
#
# >> End Rule Semua Content Yang Tidak Dijelaskan Diatas
http_access deny all #ALL NOT DEFINED ABOVE WILL BLOCK ACCESS TO SQUID
#
######################################
#
# Sample Script
# Created by http://www.diarysysadmin.com
# SQUID PROXY CONFIGURATION
#
######################################- Open your squid proxy configuration file by run command
Recomendation Free Proxy Server using Squid Proxy on Linux Ubuntu Server
Using squid as proxy server is very recommended, free tools with a great feature and advantages. Below a few advantages using squid as your proxy server :- Economic
You can save your budget, you can save your cost since squid proxy is a free tools - Monitoring
You can monitor what user most visited and how much bandwith you needed at your company - Availability
Since a resource is very small and simple, you can create second squid proxy server as backup. When your old server damage, just un-plug your old server network cable and re-plug to your backup server - User Experience
Your user would think "amazing !!! an connection very fast !!!" since squid proxy do caching system on background - Security
You can configure an policy as your organization needed related internet connection access
- Economic
** Note : Pay attention to every detail steps that informed, failure or damage to your system or data is not my responsibility "Do With Your Own Risk" or you can do research through the Lab to minimize your system failure
